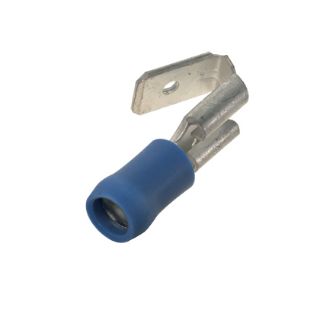

DV14-250P-M PAN

Name: DV14-250P-M PAN
Brand: Panduit
SKU: DV14-250P-M PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DV14-250P-M

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece

Description

Panduit® Piggyback Disconnect, Loose Piece, Series: DV-P, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 to 0.032 in Tab, Sleeve/Standard Barrel, 300 VAC, Specifications: 1/4 in L Wire Strip, 0.16 in Dia Maximum Wire Vinyl Insulation, Standard Barrel Configuration, 194 deg F, Brass, Blue, Tin Plated, 0.88 in L x 0.29 in W Dimensions

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Combination of female disconnect and male tab allows versatility in points of connection
Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications

Specifications

Barrel Type:	Sleeve/Standard
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Stranded Copper
Country of Origin:	JP
Dimensions:	0.88 in L x 0.29 in W
Finish:	Tin Plated
Material:	Brass
Series:	DV-P
Specifications:	1/4 in L Wire Strip, 0.16 in Dia Maximum Wire Vinyl Insulation, Standard Barrel Configuration
Tab Size:	0.25 to 0.032 in
Temperature Rating:	194 deg F
Voltage Rating:	300 VAC
