DV14-250P-MYY PAN

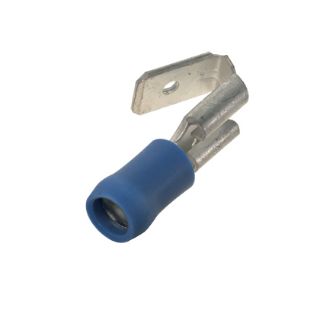

Picture of DV14-250P-MYY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
DV14-250P-MYY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$0.97 / EA

Description

Brand Name

Panduit®

Description

The vibration resistant piggyback disconnect is made of brass and is tin coated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.25 x 0.032 in (6.3 x 0.8 mm) and supports a wire range of 16 to 14 AWG (1.5 to 2.5 sq-mm). It is 0.88 in (22.4 mm) L and 0.29 in (7.4 mm) W. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000.
Panduit®, DV14-250P-MYY, Loose Piece Disconnect, Standard Copper Conductor, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Sleeve Barrel, Piggyback Terminal, 300 VAC, Specifications: Vinyl Barrel Insulation, 194 deg F, Brass, Blue, Tin Coated, 0.88 in L x 0.29 in W Dimensions

Standards

ARRA Compliant | RoHS Compliant | UL 94V-2/HB | Buy American Act Compliant

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Combination of female disconnect and male tab allows versatility in points of connection
  • Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications

Specifications

Barrel Type:Sleeve
Color:Blue
Conductor Size:16 to 14 AWG
Conductor Type:Standard Copper
Country of Origin:ID
Dimensions:0.88 in L x 0.29 in W
Finish:Tin Coated
Material:Brass
Specifications:Vinyl Barrel Insulation
Tab Size:0.25 in W x 0.032 in THK
Temperature Rating:194 deg F
Terminal Type:Piggyback
Voltage Rating:300 VAC
