DVC11K115SEM QM

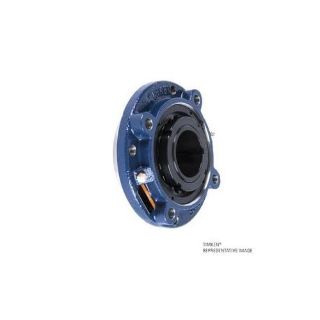

Picture of DVC11K115SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
DVC11K115SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,155.56 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, DVC11K115SEM, Piloted Flange Cartridge, Series: DVC, 1.9375 in Bore, 3.8 in Bolt Center-to-Center Length, 5.38 in Diameter Bolt Circle, Piloted Flange Mounting, 6.38| in Overall Length/Diameter, 2.49 in Overall Depth, 2.49 in Overall Height, Tapered Adapter Locking Device, Steel Bearing, Nitrile Rubber Seal, 140000 N Dynamic/142000 N Static Load, 2200 rpm Grease/2200 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3.8 in
Bolt Circle Diameter:5.38 in
Bore Diameter:1.9375 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:140000 N Dynamic/142000 N Static
Locking Device:Tapered Adapter
Maximum Speed:2200 rpm Grease/2200 rpm Oil
Overall Depth:2.49 in
Overall Height:2.49 in
Overall Length/Diameter:6.38 in
Seal Material:Nitrile Rubber
Series:DVC
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
