DVC17K215SB QM

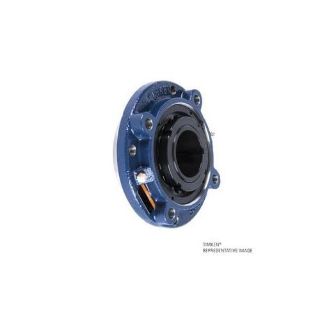

Picture of DVC17K215SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
DVC17K215SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,975.71 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, DVC17K215SB, Piloted Flange Cartridge, Series: DVC, 2.9375 in Bore, 5.3 in Bolt Center-to-Center Length, 7.5 in Diameter Bolt Circle, Piloted Flange Mounting, 8.75| in Overall Length/Diameter, 3.14 in Overall Depth, 3.14 in Overall Height, Tapered Adapter Locking Device, Steel Bearing, Nitrile Rubber Seal, 297000 N Dynamic/320000 N Static Load, 1100 rpm Grease/1100 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.3 in
Bolt Circle Diameter:7.5 in
Bore Diameter:2.9375 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:297000 N Dynamic/320000 N Static
Locking Device:Tapered Adapter
Maximum Speed:1100 rpm Grease/1100 rpm Oil
Overall Depth:3.14 in
Overall Height:3.14 in
Overall Length/Diameter:8.75 in
Seal Material:Nitrile Rubber
Series:DVC
Temperature Rating:-50 to 200 deg F
