DVF11K050SN QM

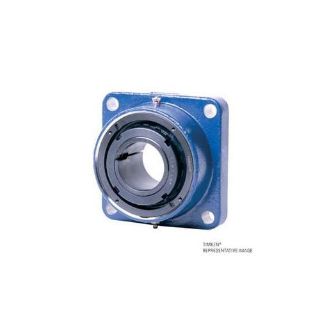

Picture of DVF11K050SN QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
DVF11K050SN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,475.34 / EA

Description

Brand Name

Timken®

Type

Four-Bolt

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, DVF11K050SN, Square Flange Block, Four-Bolt, Series: DVF, 1.9685 in Bore, 4.38 in Bolt Center-to-Center Length, 6.19 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5.5 in Overall Length/Diameter, 2.64 in Overall Depth, 5.5 in Overall Height, Tapered Adapter Locking Device, Steel Bearing, Viton Seal, 140000 N Dynamic/142000 N Static Load, 2200 rpm Grease/2200 rpm Oil Maximum, -30 to 400 deg F, Painted

Application

Excellent in high-load applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Medium-duty contact triple-lip seal, made of Viton
  • This seal provides excellent chemical resistance and can operate at higher temperatures than nitrile rubber

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.38 in
Bolt Circle Diameter:6.19 in
Bore Diameter:1.9685 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:140000 N Dynamic/142000 N Static
Locking Device:Tapered Adapter
Maximum Speed:2200 rpm Grease/2200 rpm Oil
Overall Depth:2.64 in
Overall Height:5.5 in
Overall Length/Diameter:5.5 in
Seal Material:Viton
Series:DVF
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Metric
Shaft Diameter
50 mm
