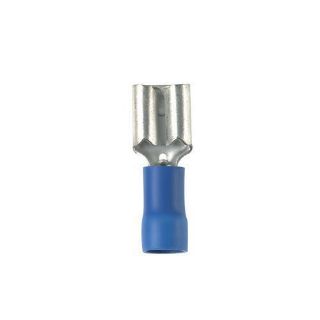

DVF14-187-M PAN

Name: DVF14-187-M PAN
Brand: Panduit
SKU: DVF14-187-M PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

DVF14-187-M

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Vibration Resistant

Description

Panduit® Pan-Term® Female Disconnect, Vibration Resistant, Series: DVF, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Insulation Grip Sleeve Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 0.162 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 194 deg F, Brass, Blue, Tin Plated, 0.76 in L x 0.23 in W x 0.1 in H, Insulated

Application

For making quick and repeatable interconnections

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:	Insulation Grip Sleeve
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.76 in L x 0.23 in W x 0.1 in H
Finish:	Tin Plated
Insulated:	Insulated
Material:	Brass
Series:	DVF
Specifications:	9/32 in L Wire Strip, 0.162 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration
Tab Size:	0.187 in W x 0.032 in THK
Temperature Rating:	194 deg F
Terminal Type:	Crimp
Voltage Rating:	300 VAC
