DVP15K207SEB QM

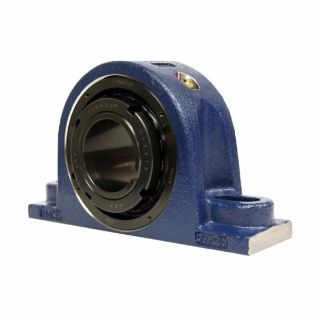

Picture of DVP15K207SEB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
DVP15K207SEB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$933.57 / EA

Description

Brand Name

Timken®

Type

Solid Block Type E

Description

Timken® Spherical Roller Bearing Housed Unit, Solid Block Type E, Series: TA/DV Series, 2-7/16 in Bore, 6.88 to 8.63 in Bolt Center-to-Center Length, 2-3/4 in Base to Bore Centerline, 10-1/4 in Overall Length, 3.08 in Overall Width, 5.9 in Overall Height, Two-Bolt Base Mounting, 2.7 in Base Width, Tapered Adapter Locking Device, B Seal, Expansion, 49900 lb Dynamic/54100 lb Static Load, 1300 rpm Grease/1300 rpm Oil Maximum, Cast Steel

Application

For use with 2-7/16 in shaft diameter

Specifications

Base to Bore Centerline:2-3/4 in
Base Width:2.7 in
Bolt Center-to-Center Length:6.88 to 8.63 in
Bore Diameter:2-7/16 in
Expansion Type:Expansion
Load Capacity:49900 lb Dynamic/54100 lb Static
Locking Device:Tapered Adapter
Material:Cast Steel
Maximum Speed:1300 rpm Grease/1300 rpm Oil
Mounting Type:Two-Bolt Base
Overall Height:5.9 in
Overall Length:10-1/4 in
Overall Width:3.08 in
Seal Type:B Seal
Series:TA/DV Series

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
2 7/16 in
Type
2 Bolt Pillow Block
