E 2.1/4 GAT

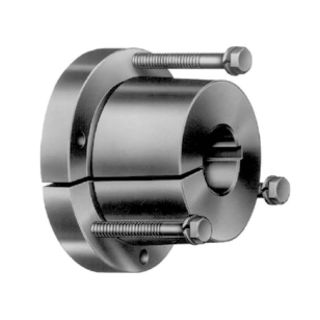

Picture of E 2.1/4 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
E 2.1/4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$195.80 / EA

Description

Brand Name

Gates®

Type

Finished Bore

Description

Gates bushings are engineered with precision tolerance for use with sheaves, sprockets, pulleys, and other power transmission applications. Bushings are available in English and metric bores and come in a variety of materials including sintered steel, cast iron, steel, ductile iron, and stainless steel.
Gates® QD Bushing, Finished Bore, 2-1/4 in Bore Dia, 3.83 in Barrel Dia, 7-1/2 in Hub Dia, 5 in Bolt Circle, 6 in Flange Dia, 0.88 in Flange Thickness, 3 Bolt Holes, 1/2-13 x 2-3/4 in Screw, 20000 in-lb, For Use With: QD Style Sheaves, Sprockets and Pulleys, 2-3/4 in Overall Length, 1/2 x 1/4 in Keyway, Cast Iron

Features

  • Size 7839 bushing
  • Bushings are made to precise tolerances

Specifications

Barrel Diameter:3.83 in
Bolt Circle Diameter:5 in
Bore Diameter:2-1/4 in
Country of Origin:US
Flange Diameter:6 in
Flange Thickness:0.88 in
Hub Diameter:7-1/2 in
Keyway Size:1/2 x 1/4 in
Material:Cast Iron
Number of Bolt Holes:3
Overall Length:2-3/4 in
Screw Size:1/2-13 x 2-3/4 in
Suitable For Use With:QD Style Sheaves, Sprockets and Pulleys
Torque Rating:20000 in-lb

Products Specifications

Brand Name
Gates
