E 38MM MSG

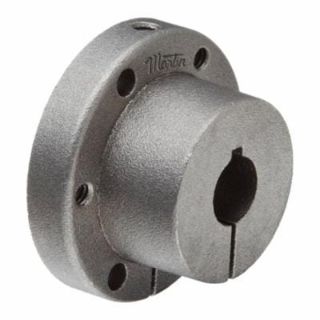

Picture of E 38MM MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
E 38MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$134.42 / EA

Description

Brand Name

Martin

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, 38 mm Bore Dia, 3.834 in Barrel Dia, 7-1/2 in Hub Dia, 5 in Bolt Circle, 6 in Flange Dia, 3/4 in Flange Thickness, 3 Bolt Holes, 1/2-13 x 2-3/4 in Screw, 20000 in-lb, 2.63 in Overall Length, 3.3 x 10 mm Keyway, Cast Iron

Features

  • Size E bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers QD bushings

Specifications

Barrel Diameter:3.834 in
Bolt Circle Diameter:5 in
Bore Diameter:38 mm
Country of Origin:US
Flange Diameter:6 in
Flange Thickness:3/4 in
Hub Diameter:7-1/2 in
Keyway Size:3.3 x 10 mm
Material:Cast Iron
Number of Bolt Holes:3
Overall Length:2.63 in
Screw Size:1/2-13 x 2-3/4 in
Torque Rating:20000 in-lb

Products Specifications

Brand Name
Martin Sprocket & Gear
