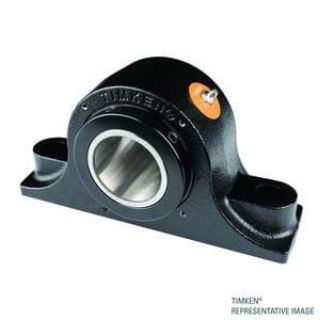

Actual Product May Vary From Image

E-P2B-TRB-2 TKN

Name: E-P2B-TRB-2 TKN
Brand: Timken
SKU: E-P2B-TRB-2 TKN
Price: 611.40 USD
Availability: OutOfStock

Timken Mounted Tapered Roller Bearing Housed Unit

Manufacturer: Timken

Manufacturer part number: E-P2B-TRB-2

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$611.40

Qty:

Product Details

Brand Name

Timken

Description

Timken® Type E mounted tapered roller bearings (housed units) feature industry-leading premium tapered roller bearings, high-performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.

Timken Mounted Tapered Roller Bearing Housed Unit Pillow Block: 2 Bolt 50.800 mm 2.0000 in Bore

Features

Industry leading high performance triple-barrier seals result in improved grease retention and are more effective at preventing water and mud/slurry ingress
Rotating collar acts as an initial flinger and provides an additional barrier
Electric deposition coatings on housings and collars provide superior corrosion resistance
Set screws with nylon patch greatly reduce set screw back out, even in the most severe applications
High performance Timken® bearings provide the highest rating and bearing life
Pillow Block 2-bolt housing

Specifications

Bearing Material:	Bearing Steel
Bearing Type:	Mounted Tapered Roller Bearing
Bolt Center - in:	7
Bolt Center - mm:	177.8
Bolt Size - in:	0.625
Bolt Size - mm:	15.875
Bolt Spacing Maximum - Inch:	7.125
Bolt Spacing Maximum - Millimeter:	180.975
Bolt Spacing Minimum - Inch:	6.875
Bolt Spacing Minimum - Millimeter:	174.625
Bore Size (ID) - in:	2.0000
Bore Size (ID) - mm:	50.800
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Heavy Duty
Dynamic Load Rating:	10300
Expansion Type:	non-expansion
Fillet Radius - Inch:	1.4
Fillet Radius - Millimeter:	35.56
Housing Configuration:	Pillow Block
Housing Material:	Cast iron
Housing Style:	2 Bolt Pillow Block
Inner Ring Width - Inch:	3.5
Inner Ring Width - Millimeter:	88.9
Length Through Bore - in:	3.5
Length Through Bore - mm:	88.9
Load Rating UOM:	lbs
Locking Type:	Set Screw: 2 Locking Collars
Manufacturer Product Page Link:	http://cad.timken.com/category/type-e-housed-unit-bearings
Material - Rolling Elements (Ball or Roller):	Steel
Material Insert Bearing:	Steel
Maximum Operating RPM (Grease):	3050
Mounting Type:	Pillow Block: 2 Bolt
Number of Mounting Holes:	2
Operating Temperature Max:	250
Operating Temperature Min:	-54
Optional Components:	Open/closed end covers
Overall Height - in:	4.5
Overall Height - mm:	114.3
Overall Length - in:	8.875
Overall Length - mm:	225.425
Overall Width - in:	3.5000
Overall Width - mm:	88.900
Precision class:	4
Relubricatable:	Yes
Retainer Material:	Steel
Retainer Type:	Steel
Row Type:	Double Row
Self Aligning:	No
Shaft Centerline - in:	2.25
Shaft Centerline - mm:	57.15
Snap Ring:	Yes
Static Load Rating:	43000
