E-P4B-TRB-4 TKN

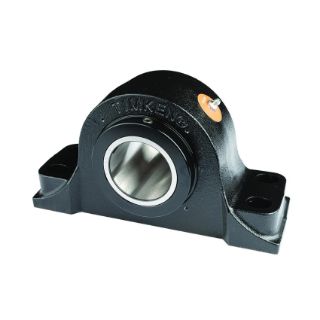

Picture of E-P4B-TRB-4 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
E-P4B-TRB-4
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,374.54 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Type E

Description

Timken® Type E mounted tapered roller bearings (housed units) feature industry-leading premium tapered roller bearings, high-performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.
Timken®, E-P4B-TRB-4, Pillow Block Roller Bearing Housed Unit, Type E, 4 in Bore, 12-1/4 to 12-3/4 in Bolt Center-to-Center Length, 4-1/4 in Base to Bore Centerline, 15-1/4 in Overall Length, 6-1/4 in Overall Width, 8-1/2 in Overall Height, Four-Bolt Base Mounting, Round Bore, 4-1/2 in Base Width, Double Set Screw Collar Locking Device, Non-Expansion, 19600 lb Dynamic/108600 lb Static Load, -54 to 250 deg F, 1530 rpm Maximum, Powder Coated

Application

Pulp, Paper, Power Generation, Mining, Cement, Aggregate, Air-Handling Equipment, Water Treatment and Machine Applications

Specifications

Base to Bore Centerline:4-1/4 in
Base Width:4-1/2 in
Bolt Center-to-Center Length:12-1/4 to 12-3/4 in
Bore Diameter:4 in
Bore Type:Round
Expansion Type:Non-Expansion
Finish:Powder Coated
Load Capacity:19600 lb Dynamic/108600 lb Static
Locking Device:Double Set Screw Collar
Maximum Speed:1530 rpm
Mounting Type:Four-Bolt Base
Overall Height:8-1/2 in
Overall Length:15-1/4 in
Overall Width:6-1/4 in
Seal Type:Double Lip
Temperature Rating:-54 to 250 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
4 in
Type
Tapered Roller Pillow Block
