E-PF-TRB-55MM TKN

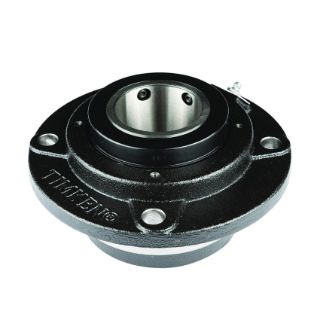

Picture of E-PF-TRB-55MM TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
E-PF-TRB-55MM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,163.92 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Heavy Duty Non-Expansion Round Bore Type E

Description

Timken® Type E mounted tapered roller bearings (housed units) feature industry leading premium tapered roller bearings, high performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.
Timken®, E-PF-TRB-55MM, Tapered Roller Bearing Unit, Heavy Duty Non-Expansion Round Bore Type E, 55 mm Bore, 107.696 mm Bolt Center-to-Center Length, 152.4 mm Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 180.975 mm Overall Length/Diameter, 95.25 mm Overall Depth, 180.975 mm Overall Height, Double Set Screw Collar Locking Device, Steel Bearing, 10900 lb Dynamic/48200 lb Static Load, 2730 rpm Maximum, -54 to 250 deg F, E-Coated

Application

Pulp, Paper, Power Generation, Mining, Cement, Aggregate, Air-Handling Equipment, Water and Waste Water Treatment Industries

Standards

ANSI/ABMA Standard | ATEX 94/9/EC | CE 93/68/EEC | REACH EC 1907/2006/RoHS 2011/65

Features

  • Industry leading high performance triple-barrier seals result in improved grease retention and are more effective at preventing water and mud/slurry ingress
  • Rotating collar acts as an initial flinger and provides an additional barrier
  • Electric deposition coatings on housings and collars provide superior corrosion resistance
  • Set screws with nylon patch greatly reduce set screw back out, even in the most severe applications
  • High performance Timken® bearings provide the highest rating and bearing life
  • Double row bearing
  • Cast iron housing
  • Triple barrier seal type
  • Do not operate at bearing temperatures above 121 deg C

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:107.696 mm
Bolt Circle Diameter:152.4 mm
Bore Diameter:55 mm
Finish:E-Coated
Flange Mounting Type:4-Bolt Piloted
Load Capacity:10900 lb Dynamic/48200 lb Static
Locking Device:Double Set Screw Collar
Maximum Speed:2730 rpm
Overall Depth:95.25 mm
Overall Height:180.975 mm
Overall Length/Diameter:180.975 mm
Temperature Rating:-54 to 250 deg F
