E-PF-TRB-85MM TKN

Name: E-PF-TRB-85MM TKN
Brand: Timken
SKU: E-PF-TRB-85MM TKN
Price: 2,747.94 USD
Availability: OutOfStock

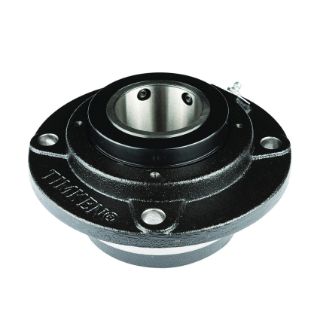

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

E-PF-TRB-85MM

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,747.94 / EA

Description

Brand Name

Timken®

Type

Heavy Duty Non-Expansion Round Bore Type E

Description

Timken® Type E mounted tapered roller bearings (housed units) feature industry leading premium tapered roller bearings, high performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.

Timken®, E-PF-TRB-85MM, Tapered Roller Bearing Unit, Heavy Duty Non-Expansion Round Bore Type E, 85 mm Bore, 154.94 mm Bolt Center-to-Center Length, 219.075 mm Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 260.35 mm Overall Length/Diameter, 127 mm Overall Depth, 260.35 mm Overall Height, Double Set Screw Collar Locking Device, Steel Bearing, 19600 lb Dynamic/108600 lb Static Load, 1640 rpm Maximum, -54 to 250 deg F, E-Coated

Application

Pulp, Paper, Power Generation, Mining, Cement, Aggregate, Air-Handling Equipment, Water and Waste Water Treatment Industries

Standards

ANSI/ABMA Standard | ATEX 94/9/EC | CE 93/68/EEC | REACH EC 1907/2006/RoHS 2011/65

Features

Industry leading high performance triple-barrier seals result in improved grease retention and are more effective at preventing water and mud/slurry ingress
Rotating collar acts as an initial flinger and provides an additional barrier
Electric deposition coatings on housings and collars provide superior corrosion resistance
Set screws with nylon patch greatly reduce set screw back out, even in the most severe applications
High performance Timken® bearings provide the highest rating and bearing life
Double row bearing
Cast iron housing
Triple barrier seal type
Do not operate at bearing temperatures above 121 deg C

Specifications

Bearing Material:	Steel
Bolt Center-to-Center Length:	154.94 mm
Bolt Circle Diameter:	219.075 mm
Bore Diameter:	85 mm
Finish:	E-Coated
Flange Mounting Type:	4-Bolt Piloted
Load Capacity:	19600 lb Dynamic/108600 lb Static
Locking Device:	Double Set Screw Collar
Maximum Speed:	1640 rpm
Overall Depth:	127 mm
Overall Height:	260.35 mm
Overall Length/Diameter:	260.35 mm
Temperature Rating:	-54 to 250 deg F
