E-TTU-TRB-1 3/4 TKN

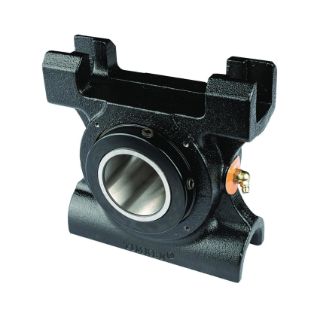

Picture of E-TTU-TRB-1 3/4 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
E-TTU-TRB-1 3/4
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,134.19 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Type E Top Angle

Description

Timken® Type E mounted tapered roller bearings (housed units) feature industry-leading premium tapered roller bearings, high-performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.
Timken®, E-TTU-TRB-1 3/4, Take-Up Tapered Roller Bearing Unit, Type E Top Angle, Series: E-TTU, 1-3/4 in Bore, 6-1/2 in Length, 3-1/2 in Width, 6-3/8 in Height, 10300 lb Dynamic/43000 lb Static Load, Steel Bearing, 2-9/16 in Base Thickness, -54 to 250 deg F, E-Coated

Application

Air Handling, Cement and Aggregate, Material Handling Equipment, Mining, Mixers, Pulp and Paper, Power Generation, Water and Waste Water Treatment, Washers, Shredders, Mills and Oven/Furnace Roller Beds

Standards

ABMA/ANSI Standard

Features

  • Industry leading high performance triple-barrier seals result in improved grease retention and are more effective at preventing water and mud/slurry ingress
  • Rotating collar acts as an initial flinger and provides an additional barrier
  • Electric deposition coatings on housings and collars provide superior corrosion resistance
  • Set screws with nylon patch greatly reduce set screw back out, even in the most severe applications
  • High performance Timken® bearings provide the highest rating and bearing life
  • 47% increase in bearing life over the leading competitor
  • Improved lubrication performance
  • Reduced internal stresses
  • Enhanced performance
  • 12% higher load capacity than the leading competitor
  • Optimized bearing profiles
  • Improved surface textures
  • Super-clean and high-alloy bearing steel
  • Cast iron housing
  • Heavy duty and non-expansion
  • Triple barrier seal and 2 set screw locking collar
  • Double row, heavy duty and round bore

Specifications

Base Thickness:2-9/16 in
Bearing Material:Steel
Bore Diameter:1-3/4 in
Finish:E-Coated
Height:6-3/8 in
Length:6-1/2 in
Load Capacity:10300 lb Dynamic/43000 lb Static
Series:E-TTU
Temperature Rating:-54 to 250 deg F
Width:3-1/2 in
