E004 MAR

Name: E004 MAR
Brand: Marathon Electric Motors
SKU: E004 MAR
Availability: OutOfStock

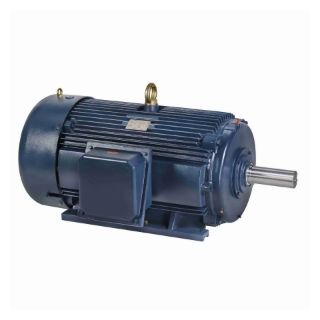

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

215TTFC6081

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® Globetrotter® AC Motor, 6-Pole Continuous-Duty, Compressor Motors, General Purpose AC Motors Application, Inverter Ready Special Features, 5 hp, 575 VAC, 5.6 A, 60 Hz Frequency, 3 ph ph, 1180 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 215T Frame, 1.38 in Dia x 3.38 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 28 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Constant Torque Speed, 10:1 Variable Torque Speed, 19.62 in L x 13.81 in W x 12.44 in H Dimensions

Application

Pumps, Conveyors, Blowers and Other Industrial Machinery

Standards

CE | CSA Certified | EISA Compliant | NEMA PremiumÂ® Efficiency | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:	5.6 A
Application Type:	Compressor Motors, General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	10:1
Country of Origin:	CN
Dimensions:	19.62 in L x 13.81 in W x 12.44 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	215T
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.38 in Dia x 3.38 in L
Speed:	1180 rpm
Temperature Rating:	40 deg C
Torque Rating:	28 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	575 VAC
