E005 MAR

Name: E005 MAR
Brand: Marathon Electric Motors
SKU: E005 MAR
Availability: OutOfStock

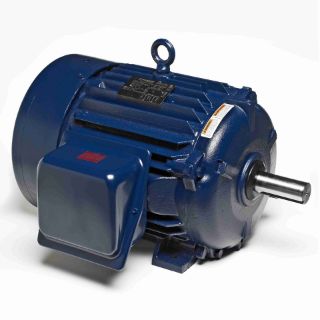

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

E005

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

254TTFC6081

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 C-Face Footed models are rated 60/50 Hz, same HP 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power F1 conduit box on Rigid Base, F3 on C-Face Footed (Rigid Base) motors Motor will accept a C-face kit Shaft slinger, Class F insulation

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	23.19
CE:	Y
Connection Drawing Number:	005190.01ME
Country of Origin:	China
CSA:	Y
Current:	8.9
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91.7
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Cast Iron
Frame Size:	254
Frame Suffix:	T
Frame Type:	254T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	7.50
Insulation Class:	F
IP Code:	43
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6308
ODE Bearing Type:	Ball
Outline Drawing Number:	16953860ME-254T
Phases:	3
Power Factor:	70
Power Rating (HP):	7.50
Power Rating (kW):	5.6
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	4.25
Shaft Type:	T
Speed:	1185
Speed Max:	1185
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	575
