E010 MAR

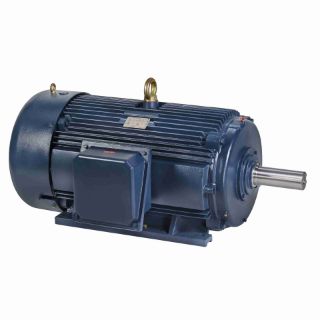

Picture of E010 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
E010
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

326TTFC6081

Features

Meets or exceeds NEMA Premium® efficiencies NEMA Premium® models are in compliance with EISA2007 Cast iron frame and brackets Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque, 1.0 SF (except as noted) 1.15 Service Factor Class F Insulation Standard assembly F1, reversible to F2 assembly UL Recognized, CSA Certified and CE Mark

Specifications

Assembly/Box Mounting:F1/F2 CAPABLE
C Dim (IN):31.02
CE:Y
Connection Drawing Number:00519001ME
Country of Origin:China
CSA:Y
Current:31
DE Bearing Size:6312
DE Bearing Type:BALL
Duty:CONTINUOUS
Efficiency:93.6
Electrical Type:SQ CAGE INV RATED
Enclosure Type:TEFC
Frame Material:CAST IRON
Frame Size:326
Frame Suffix:T
Frame Type:326T
Frequency:60
HP:30
Insulation Class:F
IP Code:43
KVA Code:G
Max Ambient:40°C
Motor Orientation:HORIZONTAL
Mounting Type:RIGID
NEMA Design:B
Number of Poles:6
Number of Speeds:0
ODE Bearing Size:6312
ODE Bearing Type:BALL
Outline Drawing Number:16954160LN
Phases:3
Power Factor:78
Power Rating (HP):30
Power Rating (kW):22.4
Resistance Main:0.197
Rotation:REV
Service Factor:1.15
Shaft Diameter (IN):2.13
Shaft Extension:5.25
Shaft Type:T
Speed:1190
Speed Max:1190
Starting Type:LINE OR INVERTER
Type of Overload Protector:NONE
UL:Recognized
Voltage:575

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
TEFC
Horsepower
30 HP
Speed Rating
1190
Type
Squirrel Cage Inverter Rated
Voltage Rating
575 V
