E100 MAR

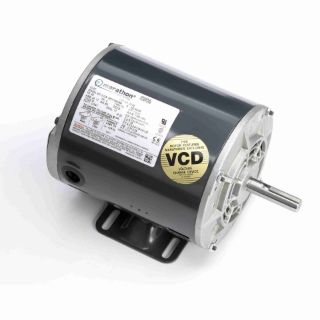

Picture of E100 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
E100
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

143TTDR4035

Features

NEMA JM pump shaft dimensions JMV frame includes drip cover for vertical mount without base JM frame has rigid base, drip cover not included Ball bearings, mechanically locked on shaft end Continuous duty 1.15 Service Factor UL Recognized and CSA Certified UL Listed for Fire Pump applications (except as noted)

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):14.62
CE:Y
Connection Drawing Number:A-EE7308
Country of Origin:Mexico
CSA:Y
Current:3.1/1.6
DE Bearing Size:6206
DE Bearing Type:Ball
Duty:Continuous
Efficiency:82.5
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):8.56
Frame Material:Rolled Steel
Frame Size:143
Frame Suffix:JM
Frame Type:143JM
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:1
Insulation Class:B
IP Code:22
KVA Code:M
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-100130-856
Phases:3
Power Factor:77
Power Rating (HP):1
Power Rating (kW):0.75
Resistance Main:3.68
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):0.875
Shaft Extension:4.25
Shaft Type:JM
Speed:1750
Speed Max:1750
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:230/460
