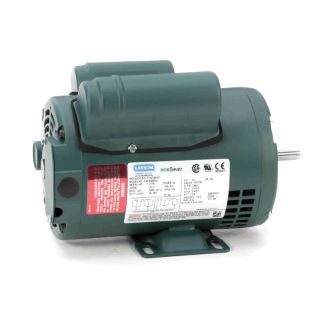

E100184.00 LEE

Name: E100184.00 LEE
Brand: Leeson Electric
SKU: E100184.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

E100184.00

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Application Type: General Purpose AC Motors, Special Features: Capacitor Start Motors, 0.5 hp, 115/230 VAC, 4.4/2.2 A, 60 Hz, 1 ph, 3450 rpm, 1 Speed, DP, 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, Selective CCW, Service Factor: 1.25, Ball Bearing, 12.2 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 10.37 in L x 6.17 in W x 7.32 in H

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	4.4/2.2 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	10.37 in L x 6.17 in W x 7.32 in H
Enclosure Type:	DP
Frame:	48
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.25
Shaft Size:	1/2 in Dia x 1-1/2 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	12.2 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/230 VAC
