E1002 MAR

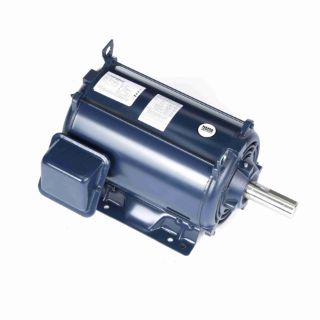

Picture of E1002 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
E1002
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

284TTDR16077

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Motors are suitable for 10:1 VT on all frame sizes and 10:1 CT up to 365T frame (Except where noted) Normally closed thermostats, as noted Class F Insulation Nameplated 60/50 hertz

Specifications

Assembly/Box Mounting:F1 Only
C Dim (IN):24.25
CE:Y
Connection Drawing Number:80022802
Country of Origin:Mexico
CSA:Y
Current:43.0/21.5
DE Bearing Size:6311
DE Bearing Type:Ball
Duty:Continous
Efficiency:91.7
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Material:Rolled Steel
Frame Size:284
Frame Suffix:T
Frame Type:284T
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:15
Insulation Class:F
IP Code:22
KVA Code:H
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid base
NEMA Design:B
Number of Poles:6
Number of Speeds:1
ODE Bearing Size:6207
ODE Bearing Type:Ball
Outline Drawing Number:80009201
Phases:3
Power Factor:71.2
Power Rating (HP):15
Power Rating (kW):11.2
Resistance Main:0
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):1.875
Shaft Extension:4.62
Shaft Type:T
Speed:1170
Speed Max:1170
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:230/460

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
15 HP
Speed Rating
1170
Type
Squirrel Cage Induction Run
Voltage Rating
230/460 V
