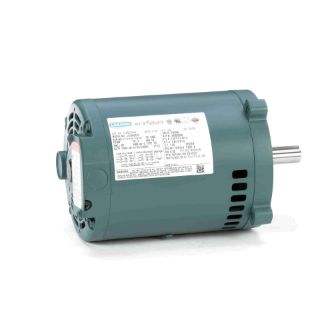

E100378.00 LEE

Name: E100378.00 LEE
Brand: Leeson Electric
SKU: E100378.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

E100378.00

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 0.75 hp, 230/460 VAC, 2.4/1.2 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, DP Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 18 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 5.62 in Dia x 9.74 in L Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage inverter rated

Specifications

Amperage Rating:	2.4/1.2 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	5.62 in Dia x 9.74 in L
Enclosure Type:	DP
Frame:	S56C
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	18 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
