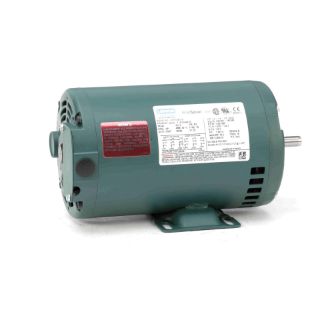

E100446.00 LEE

Name: E100446.00 LEE
Brand: Leeson Electric
SKU: E100446.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

E100446.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, 0.33 hp, 230/460 VAC, 1.2/0.6 A, 60 Hz, 3 ph, 1725 rpm, 1 Speed, DP, 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, Reversible, Service Factor: 1.35, Ball Bearing, 16.1 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.12 in L x 65.78 in W x 5.81 in H

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage inverter rated

Specifications

Amperage Rating:	1.2/0.6 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	11.12 in L x 65.78 in W x 5.81 in H
Enclosure Type:	DP
Frame:	48
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.35
Shaft Size:	1/2 in Dia x 1-1/2 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	16.1 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
