E1006-P MAR

Name: E1006-P MAR
Brand: Marathon Electric Motors
SKU: E1006-P MAR
Availability: OutOfStock

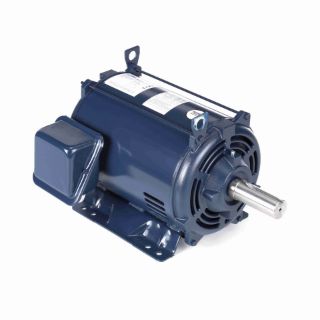

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

E1006-P

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

284TTDR16048

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Motors are suitable for 10:1 VT on all frame sizes and 10:1 CT up to 365T frame (Except where noted) Normally closed thermostats, as noted Class F Insulation Nameplated 60/50 hertz

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	24.22
CE:	Y
Connection Drawing Number:	80022801
Country of Origin:	Mexico
CSA:	Y
Current:	61.0/30.5
DE Bearing Size:	6311
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	93.6
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Drip Proof
Frame Length (IN):	14.
Frame Material:	Rolled Steel
Frame Size:	284
Frame Suffix:	T
Frame Type:	284T
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	25
Insulation Class:	F
IP Code:	22
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6207
ODE Bearing Type:	Ball
Outline Drawing Number:	610-0002
Phases:	3
Power Factor:	82.3
Power Rating (HP):	25
Power Rating (kW):	18.7
Resistance Main:	0
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.875
Shaft Extension:	5.09
Shaft Type:	T
Speed:	1765
Speed Max:	1765
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
