E100A APN

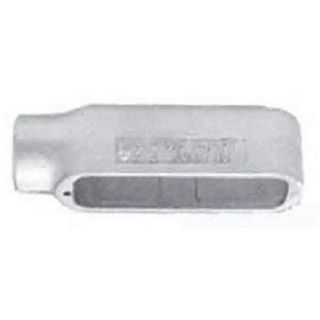

Picture of E100A APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
E100-A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

Type E

Description

Appleton the most trusted, rugged electrical solutions for industrial and hazardous environments across the world.
Appleton® Conduit Outlet Body, Type E, 1 in Hub, 1 Hub, 11.8 cu-in Capacity, Form 85 Form, NEMA FB-1 Enclosure, FNPT Connection, Surface Mounting, Aluminum, Epoxy Powder Coated, 6 in L Dimensions

Application

For rigid/IMC and EMT Conduit

Standards

UL 514B File No. E2527 | CSA C22.2 No. 18.3 | CSA 065183

Features

  • Serve as pulling fittings
  • Make bends in conduit system
  • Provide openings for splicing, Connect and change direction of conduit runs
  • Allow connections for branch runs
  • Permit access to conductors for maintece
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Roomy interiors, more wiring space
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 85 copper free aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
  • Lightweight aluminum facilitates shipping, handling and installing
  • Sizes with flat-back design ideal where fitting is mounted flat against surface
  • Internal volume and maximum wire capacity clearly marked on castings
  • Threaded style is raintight when used with casketed covers

Specifications

Capacity:11.8 cu-in
Connection Type:FNPT
Country of Origin:MX
Dimensions:6 in L
Enclosure:NEMA FB-1
Finish:Epoxy Powder Coated
Form:Form 85
Hub Size:1 in
Material:Aluminum
Mounting Type:Surface
Number of Hubs:1

Products Specifications

Brand Name
Appleton
Connection
Tapered Female Threaded
Form
85
Material
Aluminum
Type
Conduit Outlet Body
