E101641.00 LEE

Name: E101641.00 LEE
Brand: Leeson Electric
SKU: E101641.00 LEE
Availability: OutOfStock

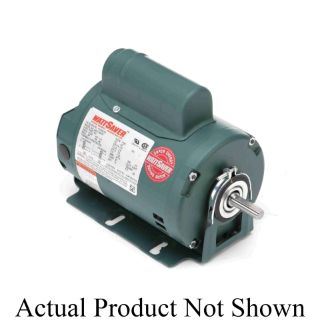

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

E101641.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Application Type: Fan and Blower Motors, General Purpose AC Motors, 0.75 hp, 230/460 VAC, 2.4/1.2 A, 60 Hz, 3 ph, 3450 rpm, 1 Speed, DP, 56H Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 18 ft-lb, Resilient Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 10.81 in L x 6.39 in W x 6.31 in H

Application

Belt Driven Fans or Fan-on-Shaft, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Designed for belted loads
NEMA design B performance
Moderate starting torque
Premium efficient ratings
Squirrel cage induction run

Specifications

Amperage Rating:	2.4/1.2 A
Application Type:	Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.81 in L x 6.39 in W x 6.31 in H
Enclosure Type:	DP
Frame:	56H
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Resilient Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	18 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
