E110220.00 LEE

Name: E110220.00 LEE
Brand: Leeson Electric
SKU: E110220.00 LEE
Availability: OutOfStock

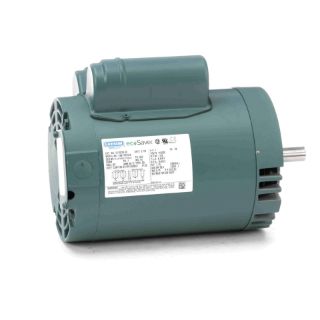

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

E110220.00

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 1 hp, 115/230 VAC, 8.4/4.2 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, DP Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 48 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 11.87 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	8.4/4.2 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.87 in L
Enclosure Type:	DP
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	48 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/230 VAC
