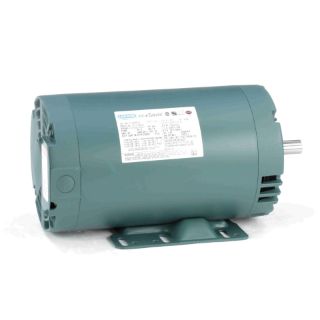

E116756.00 LEE

Name: E116756.00 LEE
Brand: Leeson Electric
SKU: E116756.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

E116756.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 45CD06

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, 2 hp, 230/460 VAC, 5.8/2.9 A, 60 Hz, 3 ph, 1745 rpm, 1 Speed, DP, 56H Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 6 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.37 in L x 6.5 in W x 6.74 in H

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage inverter rated

Specifications

Amperage Rating:	5.8/2.9 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.37 in L x 6.5 in W x 6.74 in H
Enclosure Type:	DP
Frame:	56H
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Torque Rating:	6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
