E12D4 MAR

Name: E12D4 MAR
Brand: Marathon Electric Motors
SKU: E12D4 MAR
Availability: OutOfStock

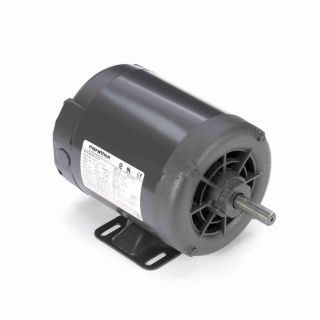

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

E12D4

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

5KS49HN4077

Ball bearings 1.25 service factor

CE:	N
Connection Drawing Number:	113A930FIG2
Country of Origin:	Mexico
CSA:	Y
Current:	1.8-1.8
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	77
Electrical Type:	Three Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	6.15
Frame Material:	Rolled Steel
Frame Size:	56
Frame Type:	56
Frequency:	60
Harmonized Tariff Code:	8501.51.4040
HP:	1/2
Insulation Class:	B
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Rigid Base
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A107791P2
Phases:	3
Power Rating (HP):	0.5
Power Rating (kW):	0.37
Rotation:	Counterclockwise/Clockwise
Service Factor:	1.25
Shaft Extension:	.625 X 1.88 .188 X .188 KEY
Speed:	1725
Speed Max:	1725
Type of Overload Protector:	NONE
UL:	Recognized
Voltage:	208-230/460
