E50C95 MSG

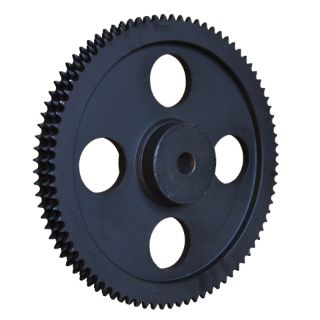

Martin E50C95 Type C Triple Strand Welded Reboreable Roller Chain Sprocket With Lightening Hole, 1-5/16 to 3 in Dia Bore, 19.268 in OD, #50 Chain, 95 Teeth, 5/8 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: E50C95
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$821.85

Product Details

Brand Name

Martin

Type

Type C Triple Strand Welded Reboreable

Description

Martin triple strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, setscrews and harden teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type C Triple Strand Welded Reboreable, 1-5/16 to 3 in Bore, 19.268 in OD, #50 Chain, 95 Teeth, 5/8 in Pitch, 18.903 in Pitch Diameter, 4-3/4 in Diameter Hub, 3-3/4 in Length Through Bore, Steel

Standards

ANSI Specified | B29.1 - 1975 | CEMA Standard | MPTA | NIBA Certified | PTDA Approved

Features

  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out
  • Manufactured of high carbon steel

Specifications

Bore Diameter:1-5/16 to 3 in
Chain Size:#50
Hub Diameter:4-3/4 in
Length Through Bore:3-3/4 in
Material:Steel
Number of Teeth:95
Outside Diameter:19.268 in
Pitch:5/8 in
Pitch Diameter:18.903 in
