E5H15S SHD

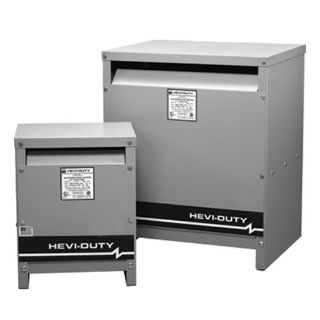

Picture of E5H15S SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
E5H15S
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Type

Ventilated Distribution Transformer

Description

SolaHD, Ventilated Distribution Transformer, DOE 10 Cfr P431 - DOE 2016 Compliant, Ul Listed E25872, 15 KVA, Primary Voltage 480 V, Secondary Voltage 240 V, 60 HZ, 3 Phase, Number Of Taps 7, Temperature Rating 150 Degrees C, Connection Delta-Delta W/ Ct, Winding Aluminium, Enclosure Nema Type 1

Application

Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment.

Standards

UL Listed E25872

Features

DOE 10 CFR p431 - DOE 2016 Compliant

Specifications

Cooling:AA
Country of Origin:US
Efficiency:97.9 Percent
Enclosure:NEMA TYPE 1
Frequency Rating:60 HZ
Height:23 IN
Insulation Class:220 DEG C
KVA Rating:15 KVA
Length:18 IN
Mounting:FLOOR/WALL (UP TO 500LB MAX)
Number of Phases:3
Number of Taps:7
Primary Voltage:480 V
Secondary Voltage:240 V
Temperature Rating:150 Degrees C
Width:14 IN
Winding:ALUMINIUM

Resources

Spec Sheet
