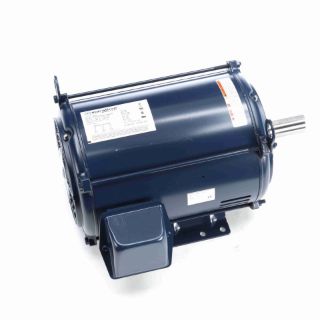

Picture of E907A MAR

Actual Product May Vary From Image

E907A MAR

10 HP General Purpose Motor, 3 phase, 1800 RPM, 200 V, 215T Frame, ODP

Manufacturer: Marathon Electric Motors

Manufacturer part number: E907A

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Alternate Supplier #

215TTDWD16346

Features

Motor will accept a C-face kit See XRI® Dripproof in Premium Efficiency section for NEMA Premium efficiencies

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	17.30
CE:	Y
Connection Drawing Number:	005102.01
Country of Origin:	Mexico
CSA:	Y
Current:	30.0
DE Bearing Size:	6307
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91.7
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	11.15
Frame Material:	Rolled Steel
Frame Size:	215
Frame Suffix:	T
Frame Type:	215T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	10
Insulation Class:	F
IP Code:	12
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	SS86500-1115
Phases:	3
Power Factor:	77.8
Power Rating (HP):	10
Power Rating (kW):	7.5
Resistance Main:	1.022
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.375
Shaft Extension:	3.47
Shaft Type:	T
Speed:	1765
Speed Max:	1765
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	200
