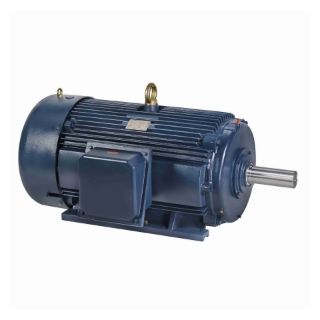

E964A MAR

Name: E964A MAR
Brand: Marathon Electric Motors
SKU: E964A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

286TSTFC6002

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

2-Pole Continuous-Duty

Description

Marathon® Globetrotter® AC Motor, 2-Pole Continuous-Duty, Compressor Motors, General Purpose AC Motors Application, Inverter Ready Special Features, 30 hp, 230/460 VAC, 68/34 A, 60 Hz Frequency, 3 ph ph, 3552 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 286TS Frame, 1.63 in Dia x 3.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Constant Torque Speed, 10:1 Variable Torque Speed, 26.43 in L Dimensions

Application

Pumps, Conveyors, Blowers and Other Industrial Machinery

Standards

CE | CSA Certified | EISA Compliant | NEMA PremiumÂ® Efficiency | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:	68/34 A
Application Type:	Compressor Motors, General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	10:1
Country of Origin:	CN
Dimensions:	26.43 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	286TS
Frequency Rating:	60 Hz
Horsepower:	30 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.63 in Dia x 3.25 in L
Speed:	3552 rpm
Temperature Rating:	40 deg C
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
