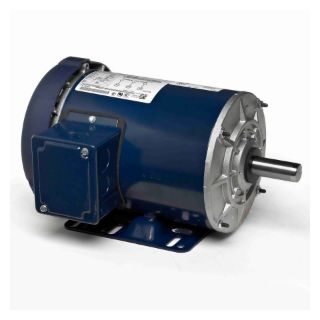

E994 MAR

Name: E994 MAR
Brand: Marathon Electric Motors
SKU: E994 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

145TTFR4001

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

2-Pole Continuous Duty

Description

Marathon® AC Motor, 2-Pole Continuous Duty, Compressor Motors, General Purpose AC Motors Application, Inverter Ready Special Features, 2 hp, 208 to 230/460 VAC, 5.6 to 5.2/2.6 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 145T Frame, 0.88 in Dia x 2.28 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 3.8 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Constant Torque Speed, 10:1 Variable Torque Speed, 13.37 in L x 9.24 in W x 7.34 in H Dimensions

Application

Pumps, Conveyors, Blowers and Other Industrial Machinery

Standards

CE | CSA Certified | EISA Compliant | NEMA PremiumÂ® XRIÂ® Efficiency | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:	5.6 to 5.2/2.6 A
Application Type:	Compressor Motors, General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	10:1
Country of Origin:	US
Dimensions:	13.37 in L x 9.24 in W x 7.34 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145T
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.28 in L
Speed:	1755 rpm
Temperature Rating:	40 deg C
Torque Rating:	3.8 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
