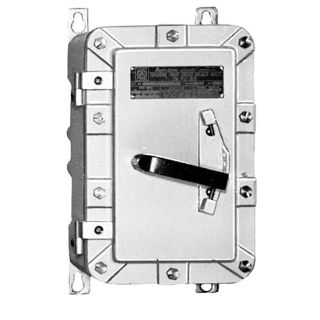

EB3JB2W150 APN

Name: EB3JB2W150 APN
Brand: Appleton
SKU: EB3JB2W150 APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

EB3JB2W150

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Bolted Enclosure Dust-Ignitionproof Explosionproof

Description

Appleton® explosionproof, dust-ignitionproof EB Series circuit breakers and enclosures are suitable for use in indoor or outdoor classified locations. The thermal magnetic circuit breaker provides over current and short circuit protection and safe disconnect. The EB Series offers thermal time delay overload protection for service entrance, feeder or branch circuits used for lighting, heating, motors and equipment.

Appleton® Circuit Breaker, Bolted Enclosure Dust-Ignitionproof Explosionproof, Series: EB Series, 600/250 VAC/VDC, 150 A, 60 Hz Frequency, 125 to 250 A Frame, Thermal/Magnetic Trip, 70 to 225 A Trip, 2 Pole, Handle Actuator, NEMA 3R/7B/7C/7D/9E/9F/9G Enclosure, Surface Mounting, 22.88 in H x 15.25 in W Dimensions, Copper Free Aluminum, Epoxy Enamel

Application

For over current and short circuit protection on service entrance, feeder or branch circuits, indoor and outdoor classified locations

Standards

Buy American Act Compliant | UL 1203 | UL File No. E84577 | NEC Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G Class III

Features

Interior components removable as an assembly to facilitate wire pulling
Ample space for wiring and installation of accessories
Breaker handle has lock bracket that can be padlocked in On or Off position, accommodates up to three padlocks
Tapped, plugged openings provided as standard for optional drain and breather
Hinged left side, screwdriver slotted captive "quick bolts"
Mating surfaces precision milled
Easy mounting, four removable mounting brackets have keyhole openings, straps are steel with triple coat finish
Positive operating breaker handle has spring steel actuator that self locates on breaker handle to prevent damage to breaker toggle if door is closed without aligning door with breaker toggle position
Each standard feed through opening one at top and one at bottom has an aluminum reducing bushing to protect conductor insulation

Specifications

Actuator Type:	Handle
Amperage Rating:	150 A
Country of Origin:	US
Dimensions:	22.88 in H x 15.25 in W
Enclosure Type:	NEMA 3R/7B/7C/7D/9E/9F/9G
Finish:	Epoxy Enamel
Frame:	125 to 250 A
Frequency Rating:	60 Hz
Material:	Copper Free Aluminum
Mounting Type:	Surface
Number of Poles:	2
Series:	EB Series
Trip Range:	70 to 225 A
Trip Type:	Thermal/Magnetic
Voltage Rating:	600/250 VAC/VDC
