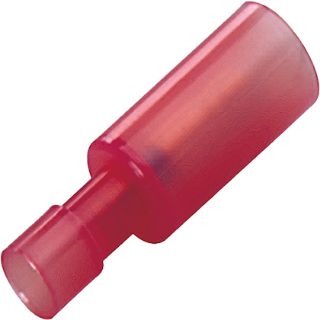

Actual Product May Vary From Image

EBNF18-4FIM-Q PAN

Name: EBNF18-4FIM-Q PAN
Brand: Panduit
SKU: EBNF18-4FIM-Q PAN
Price: 0.37 USD
Availability: InStock

Panduit® EBNF18-4FIM-Q 156 Fully Insulated Loose Piece Male Bullet Disconnect, 22 to 16 AWG Conductor Stranded Copper Conductor, Red

Manufacturer: Panduit

Manufacturer part number: EBNF18-4FIM-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	25
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.37

Qty:

Product Details

Brand Name

Panduit®

Type

Fully Insulated Loose Piece

Description

Panduit®, EBNF18-4FIM-Q, Male Bullet Disconnect, Fully Insulated Loose Piece, Series: 156, Stranded Copper Conductor, 22 to 16 AWG Conductor, 1.06 in Overall Length, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.15 in Dia Insulation, 0.41 in L Butted Seam/Funnel Entry Barrel, 185 deg F, Tin Coated, Red, 0.16 in W x 0.16 in THK Dimensions

Application

For KST2000C crimping tools

Standards

Features

Nylon-fully insulated

Specifications

Color:	Red
Conductor Size:	16 AWG
Conductor Type:	Stranded
Country of Origin:	TW
Dimensions:	0.16 in W
Finish:	Tin Coated
Material:	Copper
Overall Length:	1.06 in
Series:	156
Specifications:	0.15 in Dia Nylon Insulation, 9/32 in L Wire Strip, Butted Seam/Funnel Entry Barrel Configuration, 0.28 in Mounting
Temperature Rating:	185 deg F
Voltage Rating:	600 VAC
