EBV14-4MB-Q PAN

Name: EBV14-4MB-Q PAN
Brand: Panduit
SKU: EBV14-4MB-Q PAN
Price: 0.27 USD
Availability: InStock

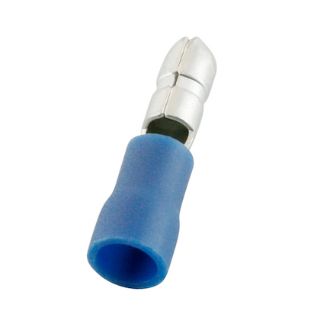

Panduit® EBV14-4MB-Q Male Bullet Disconnect, 16 to 14 AWG Conductor Stranded Copper Conductor, Brass, Blue

Manufacturer: Panduit

Manufacturer part number: EBV14-4MB-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	100
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.27

Qty:

Product Details

Brand Name

Panduit®

Type

Loose Piece Barrel Insulated Standard

Description

Panduit®, EBV14-4MB-Q, Bullet Disconnect, Male, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.83 in Overall Length, 600 VAC, Specifications: Butted Seam Vinyl Insulated Barrel, 9/32 in L Wire Strip, 0.17 in Dia Maximum Wire Insulation, 6.8 mm Mounting, Standard Connection, 122 deg F, Brass, Tin Plated, Blue, 0.15 in W Dimensions

Application

For KST2000C crimping tools

Standards

ARRA Compliant | Buy American Act Compliant | cULus File No. E466810 | RoHS Compliant

Features

Vinyl barrel insulated

Specifications

Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Stranded
Country of Origin:	TW
Dimensions:	0.15 in W
Finish:	Tin Plated
Material:	Brass
Overall Length:	0.83 in
Specifications:	0.17 in Dia Vinyl Insulation, 9/32 in L Wire Strip, Butted Seam/Funnel Entry Barrel Configuration, 0.28 in Mounting
Temperature Rating:	122 deg F
Voltage Rating:	600 VAC
