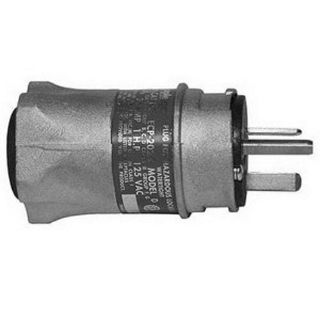

Appleton® U-Line® Interchanger™ ECP-2023 Straight Blade Plug, 125 VAC, 20 A, 3 Poles, 2 Wires
Manufacturer: Appleton
Manufacturer part number: ECP-2023
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$196.77

Product Details

Brand Name

Appleton®

Alternate Supplier #

Grainger - 11Y363

Description

Appleton® U-Line® Interchanger™ Straight Blade Plug, 125 VAC, 20 A, 3 Poles, 2 Wires, NEMA 7BCD/9G NEMA, 0.538 to 0.639 in Diameter Cord, Copper Free Aluminum

Application

For standard non-explosionproof receptacle and U-line explosionproof receptacles

Standards

CSA Certified | UL Listed for Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Group G and Coal Dust, Class III

Features

  • Explosion proof and dust-ignition proof
  • Suitable for use in such areas as refineries, petrochemical plants, and other areas subject to where ignitable gases are present
  • Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Longer plug housing for better gripping and easier plug insertion and withdrawal
  • Plugs fits any standard non-explosion proof receptacle (NEMA 5-15R, 5-20R or 6-20R) as well as U-Line explosion proof receptacles
  • A twist of the plug produces audible click to indicate fast make and break of built-in switch contacts
  • Twisting plug locks it in place and cannot be accidentally pulled out

Specifications

Amperage Rating:20 A
Cord Diameter:0.538 to 0.639 in
Country of Origin:MX
Material:Copper Free Aluminum
NEMA Rating:NEMA 7BCD/9G
Number of Poles:3
Number of Wires:2
Voltage Rating:125 VAC
