ECP3580T-4 BLD

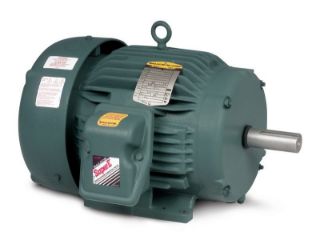

Picture of ECP3580T-4 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
ECP3580T-4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,332.81 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Chemical Processing (Not Dc)

Features

1HP,3450RPM,3PH,60HZ,143T,0516M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:143
Frequency Rating:60 Hz
Full Load Current:1.4 A
Horsepower:1.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:84.00%
Phase:Three Phase
Power Factor:82
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,450 rpm
Sub Brand:Super-E
Voltage Rating:460 V

Resources

Spec SheetWarranty

Products Specifications

Application
Severe Duty
Brand Name
Baldor
Enclosure
TEFC
Frame
143T
Frequency Rating
60 Hz
Horsepower
1 HP
Speed Rating
3600 RPM
Type
Severe Duty Motor
Voltage Rating
460
