ECP3774T BLD

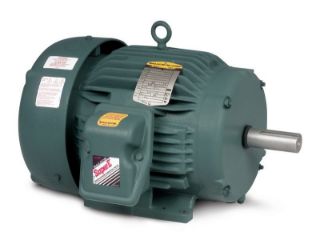

Picture of ECP3774T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
ECP3774T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,814.05 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Chemical Processing (Not Dc)

Features

10HP,1760RPM,3PH,60HZ,215T,0748M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:215
Frequency Rating:60 Hz
Full Load Current:12.5 A; 25.0 A
Horsepower:10.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:92.40%
Phase:Three Phase
Power Factor:82
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,760 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 460 V

Resources

Spec SheetWarranty

Products Specifications

Application
Severe Duty
Brand Name
Baldor
Enclosure
TEFC
Frame
215T
Frequency Rating
60 Hz
Horsepower
10 HP
Speed Rating
1800 RPM
Type
Severe Duty Motor
Voltage Rating
230/460

Customers who bought this item also bought

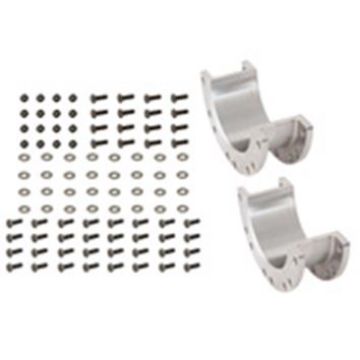

Picture of 6788153 RND
