EDNF18250FIMB-L PAN

Name: EDNF18250FIMB-L PAN
Brand: Panduit
SKU: EDNF18250FIMB-L PAN
Price: 0.31 USD
Availability: OutOfStock

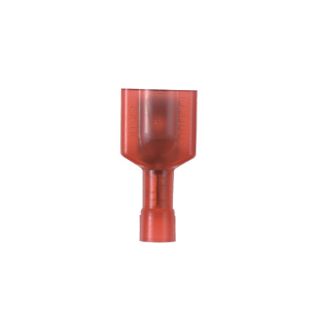

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

EDNF18250FIMB-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$0.31 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

Fully Insulated

Description

Panduit®, EDNF18250FIMB-L, Male Tab Disconnect, Fully Insulated, Series: EDNF-FIMB, 20 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam Barrel, 600 VAC, Specifications: 0.136 in Dia Maximum Wire Nylon Insulation, 9/32 in L Wire Strip, 257 deg F, Brass, Red, Nickel Plated, 0.91 in L x 0.45 in W x 0.34 in H Dimensions

Application

For CT-520, CT-600-A, CT-1525 and CT-2500 crimp tools

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed

Features

Chamfered barrel opening assures quick and easy wire insertion
Mates with dimpled female socket detent ensures firm grip
Mates with type Q-F female disconnects
MR20, Y10D installation tool

Specifications

Barrel Type:	Butted Seam
Color:	Red
Conductor Size:	20 to 18 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Dimensions:	0.91 in L x 0.45 in W x 0.34 in H
Finish:	Nickel Plated
Material:	Brass
Series:	DNF-FIMB
Specifications:	0.136 in Dia Insulation, 9/32 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	257 deg F
Terminal Type:	Male
Voltage Rating:	600 VAC
