EDS150F1 APN

Name: EDS150F1 APN
Brand: Appleton
SKU: EDS150F1 APN
Price: 434.55 USD
Availability: OutOfStock

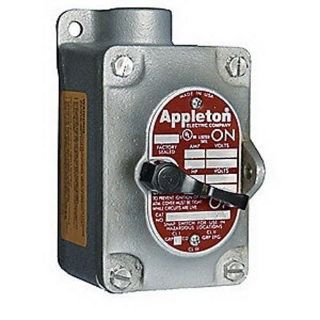

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

EDS150-F1

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$434.55 / EA

Description

Brand Name

Appleton®

Type

1-Gang Dead End

Alternate Supplier #

Grainger - 13U964

Description

Appleton® explosionproof, dust-ignitionproof EDS series factory sealed tumbler switches confine the arcing of enclosed switches, preventing ignition of ignitable atmospheres during connect and disconnect operation of lighting and light power loads. They are designed for use in classified areas where ignitable vapors, gases or highly combustible dusts are present such as chemical and petrochemical plants, refineries and other process industries.

Appleton® UNILETS™ Explosionproof Tumbler Switch, 1-Gang Dead End, Series: EDS, 120 to 277 VAC, 20 A, 1 Pole, Lever Actuator, Thread Connection, NEMA 7CD/9EFG NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 5.38 in H x 3 in W x 4.69 in D Dimensions

Application

Used in classified areas where ignitable vapors, gases or highly combustible dusts are present and installed in chemical plants, petrochemical plants, refineries and other process industries

Standards

UL 894 | UL 1203, E10523, E81751 UL Listed | Class I, Group B, As Well As Class I, Groups C and D | Class II, Groups E, F, G, and Class III

Features

Enclosures have external mounting lugs for ease of mounting
Smooth, rounded integral bushing in each hub protects conductor insulation
Enclosures furnished with internal ground screw
Factory sealed switches are designed to a UL standard so that any arcing devices are contained within an explosionproof labyrinth switch
Tumbler switch devices are approved for installation without additional external sealing fittings
20 A 4-way and all 30 A models utilize a switch enclosed in separate sealing chamber
Smooth double face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flametight construction
Sealing chamber has prewired factory sealed pigtail leads to switch
Threaded stainless steel operating handle provides positive corrosion resistant operation
Corrosion resistant, strong stainless steel hex head cap screws attach cover or body or sealing chamber assembly for approved flame-tight construction
Pad lockable in the on or off position

Includes

Internal Ground Screw

Specifications

Actuator:	Lever
Amperage Rating:	20 A
Connection Type:	Thread
Country of Origin:	MX
Dimensions:	5.38 in H x 3 in W x 4.69 in D
Finish:	Triple Coated
Material:	Malleable Iron
Mounting Type:	Surface
NEMA Rating:	NEMA 7CD/9EFG
Number of Poles:	1
Series:	EDS
Voltage Rating:	120 to 277 VAC
