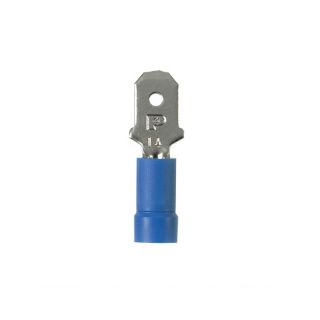

Actual Product May Vary From Image

EDV14-250P-Q PAN

Name: EDV14-250P-Q PAN
Brand: Panduit
SKU: EDV14-250P-Q PAN
Price: 0.30 USD
Availability: InStock

Panduit® EDV14-250P-Q DV-P Barrel Insulated Piggy Back Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, Copper, Blue

Manufacturer: Panduit

Manufacturer part number: EDV14-250P-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	25
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.30

Qty:

Product Details

Brand Name

Panduit®

Type

Barrel Insulated

Description

Panduit® Piggy Back Disconnect, Barrel Insulated, Series: DV-P, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, Piggy Back Terminal, 300 VAC, Specifications: 0.16 in Dia Vinyl Barrel Insulation, 1/4 in L Wire Strip, 194 deg F, Copper, Blue, Tin Plated, 0.88 in L x 0.29 in W Dimensions

Application

For CT-100A, CT-260, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Standards

ARRA Compliant | Buy American Act Compliant | cULus File No. E78522 | RoHS Compliant | UL94 V-0 Flammability Rated

Specifications

Barrel Type:	Sleeve
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Stranded Copper
Country of Origin:	ID
Dimensions:	0.88 in L x 0.29 in W
Finish:	Tin Plated
Material:	Brass
Series:	DV-P
Specifications:	0.16 in Dia Vinyl Barrel Insulation, 1/4 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	194 deg F
Terminal Type:	Piggy Back
Voltage Rating:	300 VAC
