EDV18-250B-L PAN

Name: EDV18-250B-L PAN
Brand: Panduit
SKU: EDV18-250B-L PAN
Price: 0.20 USD
Availability: OutOfStock

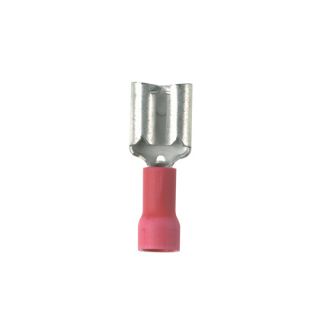

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

EDV18-250B-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$0.20 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

Type EDV-B

Description

Panduit®, EDV18-250B-L, Female Disconnect, Series: EDV-B, Copper Stranded Conductor, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Serrated Barrel, Crimp Terminal, 600 VAC, Specifications: 1/4 in L Wire Strip, 0.15 in Dia Maximum Wire Vinyl Insulation, 221 deg F, Brass, Red, TiN Plated, 0.81 in L x 0.29 in W x 0.12 in H Dimensions, Insulated: Insulated

Application

For use with CT-1525, CT-2300/ST and CT-2500/L crimping tools

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
For use with CT-1525, CT-2300/ST and CT-2500/L crimping tools

Specifications

Barrel Type:	Butted Seam/Serrated
Color:	Red
Conductor Size:	22 to 18 AWG
Conductor Type:	Copper Stranded
Country of Origin:	MX
Dimensions:	0.81 in L x 0.29 in W x 0.12 in H
Finish:	TiN Plated
Insulated:	Insulated
Material:	Brass
Series:	EDV-B
Specifications:	0.15 in Dia Vinyl Insulation, 1/4 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Crimp
Voltage Rating:	600 VAC
