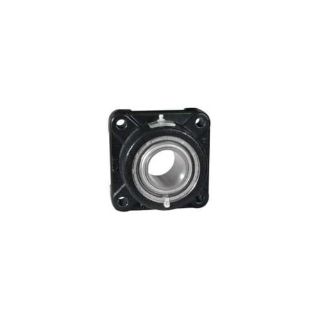

EFRB22435E7 LBB

Name: EFRB22435E7 LBB
Brand: Rexnord
SKU: EFRB22435E7 LBB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

EFRB22435E7

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Link-Belt®

Type

Type E

Description

Self-aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

Link-Belt® Flanged Block Spherical Roller Bearing, Type E, Series: B22400, 2-3/16 in Bore, 4-7/8 in Bolt Center-to-Center Length, 6-57/64 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 6-1/4 in Overall Length/Diameter, 3-1/2 in Overall Depth, 6-1/4 in Overall Height, Single Set Screw Collar Locking Device, Cast Iron Bearing, 32500 lb Dynamic/44400 lb Static Load, 1075 rpm Maximum, 225 deg F, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 11

Features

Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
Double contoured retainer pockets
Type E7 triple lip seal with metal outboard guard is designed for the most severe of applications
4 deg misalignment capabilities
Factory set clearance and lubrication

Specifications

Bearing Material:	Cast Iron
Bolt Center-to-Center Length:	4-7/8 in
Bolt Circle Diameter:	6-57/64 in
Bore Diameter:	2-3/16 in
Country of Origin:	US
Finish:	Powder Coated
Flange Mounting Type:	4-Bolt Square
Load Capacity:	32500 lb Dynamic/44400 lb Static
Locking Device:	Single Set Screw Collar
Maximum Speed:	1075 rpm
Overall Depth:	3-1/2 in
Overall Height:	6-1/4 in
Overall Length/Diameter:	6-1/4 in
Series:	B22400
Temperature Rating:	225 deg F

Resources

Video
