Actual Product May Vary From Image

EJM60BS0 FER

Name: EJM60BS0 FER
Brand: Mersen
SKU: EJM60BS0 FER
Price: 102.47 USD
Availability: InStock

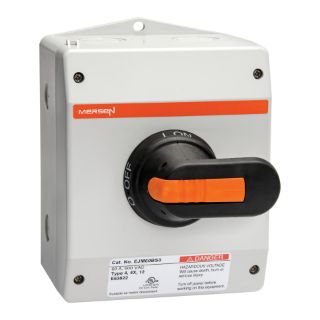

Mersen EJM60BS0 Manual Non-Fused Low Voltage Enclosed Disconnect Switch, 600 VAC, 250 VDC, 60 A, 3 Poles

Manufacturer: Mersen

Manufacturer part number: EJM60BS0

Availability: Expected Leadtime 42 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$102.47

Qty:

Product Details

Brand Name

Mersen

Type

Manual Non-Fused Low Voltage

Description

The EJM series of enclosed manual motor controllers are rotary operated, 3 or 4 pole, up to 600 VAC HP rated switches, housed in thermoplastic enclosures suitable for humid and corrosive environments. Rated NEMA 4X may be used for both indoor and outdoor applications. Products are properly installed on the load side of a branch circuit protective device and are suitable for use as motor disconnects.

Mersen Enclosed Disconnect Switch, Manual Non-Fused Low Voltage, 600 VAC, 250 VDC, 60 A, 3 Pole, 2 Wires, Selector Handle Actuator, NEMA 4X Enclosure, Flange/Threaded Mounting, Box Terminal, 7.87 in H x 5.75 in W x 5.43 in D Dimensions, Thermoplastic

Application

Load Break Switching, Circuit Isolation, Food Processing, Conveyor Systems, Service Entrance Rating, Harsh Industrial Environments and Indoor/Outdoor

Standards

RoHS Compliant | UL 508A | 508 | 98 | CSA Certified | IEC Certified | OSHA Approved

Specifications

Actuator Type:	Selector Handle
Amperage Rating:	60 A
Country of Origin:	MX
Dimensions:	7.87 in H x 5.75 in W x 5.43 in D
Enclosure Type:	NEMA 4X
Material:	Thermoplastic
Mounting Type:	Flange/Threaded
Number of Poles:	3
Number of Wires:	2
Terminal Type:	Box
Voltage Rating:	600 VAC, 250 VDC
