EJMM2534T BLD

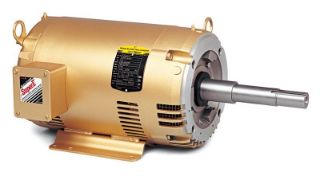

Picture of EJMM2534T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EJMM2534T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,974.13 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Electric Motors, Pump, Three Phase, Close Coupled, Open Drip Proof, Horsepower: 30, RPM: 3525, Frame Size: 284JM, Voltage Rating: 230/460 VAC, Rotation: Counter Clockwise, Bearings: Ball, Service Factor: 1.15, Enclosure Type: Open Dripproof, Thermal Prote

Application

General Purpose

Features

30HP,3510RPM,3PH,60HZ,284JM,3948M,OPSB,F

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:OPSB
Frame:284
Frequency Rating:60 Hz
Full Load Current:33.0 A; 66.0 A
Horsepower:30.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:91.70%
Phase:Three Phase
Power Factor:92
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,510 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
OPSB
Frame
284JM
Frequency Rating
60 Hz
Horsepower
30 HP
Speed Rating
3600 RPM
Type
Pump Motor
Voltage Rating
230/460
