EJMM3613T BLD

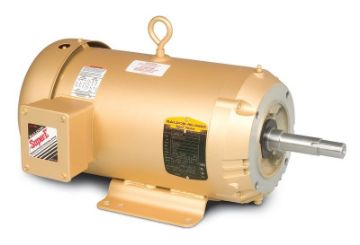

Picture of EJMM3613T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EJMM3613T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,730.50 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

5HP,3450RPM,3PH,60HZ,184JM,3630M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:184
Frequency Rating:60 Hz
Full Load Current:12.0 A; 11.8 A; 5.9 A
Horsepower:5.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:88.50%
Phase:Three Phase
Power Factor:91
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,450 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
184JM
Frequency Rating
60 Hz
Horsepower
5 HP
Speed Rating
3600 RPM
Type
Pump Motor
Voltage Rating
208-230/460
