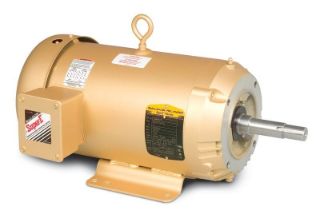

Picture of EJMM3616T BLD

Actual Product May Vary From Image

EJMM3616T BLD

7.5HP,3450RPM,3PH,60HZ,184JM,3646M,TEFC

Manufacturer: Baldor Reliance

Manufacturer part number: EJMM3616T

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,759.98

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

CA501;Catalog;9/3/2012;

Application

General Purpose

Features

7.5HP,3450RPM,3PH,60HZ,184JM,3646M,TEFC

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	184
Frequency Rating:	60 Hz
Full Load Current:	16.8 A; 18.5 A; 8.4 A
Horsepower:	7.500 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	A
NEMA Nominal Efficincy:	89.50%
Phase:	Three Phase
Power Factor:	93
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	3,450 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 230 V; 208 V

Resources

Spec Sheet Warranty
