EJPM7144T-I BLD

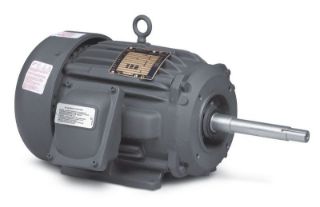

Picture of EJPM7144T-I BLD

Actual Product May Vary From Image

Product Details

Manufacturer:

Baldor Reliance

Manufacturer part number:

EJPM7144T-I

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

CA501;Catalog;9/3/2012;

Application

General Purpose

Features

5//3HP,1750//1450RPM,3PH,60//50HZ,184JP

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	XPFC
Frame:	184
Frequency Rating:	60 Hz; 50 Hz
Full Load Current:	10.4 A; 13.2 A; 5.2 A; 6.0 A
Horsepower:	5.000 hp; 3.000 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	89.50%
Phase:	Three Phase
Power Factor:	79
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,750 rpm; 1,450 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 380 V; 230 V; 190 V

Resources

Spec Sheet Warranty
