EK06ATCL11 GRL

Name: EK06ATCL11 GRL
Brand: Greenlee
SKU: EK06ATCL11 GRL
Price: 7,862.10 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Greenlee

Manufacturer part number:

EK06ATCL11

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$7,862.10 / EA

Description

Brand Name

Greenlee®

Type

Dieless Quad Point Cordless

Description

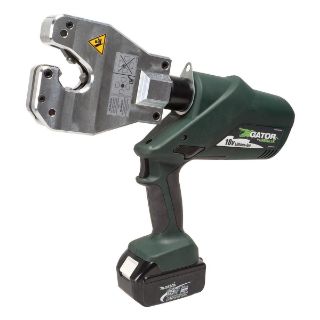

Greenlee® Gator® Battery Powered Crimp Tool, Dieless Quad Point Cordless, Series: EK06ATCL, Crimping Capacity: 6 AWG to 500 kcmil Copper Lug/Splice, 6 AWG to 400 kcmil Aluminum Lug/Splice, 55 kN Crimping Force, 18 V, Lithium-Ion Battery, 3 Ah Battery, Overmolded Tacky Grip Handle, Trigger Control, 14 in Overall Length

Standards

cULus Listed | ARRA Compliant

Features

Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
State of the art 18 V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
LED light provides the operator with the battery charge and tool maintenance status
Two-stage hydraulic system provides fast advance and power speed, saving time
Forward handle position improves tool balance
One trigger controls all tool functions
Crimping head rotates 350 deg
Tools automatically retract when the crimping cycle is complete
Overmolded tacky grip areas make gripping the tool easier and more comfortable
LED work light illuminates dark work areas
Greenlee® battery powered crimping tools now use bio-degradable oil
Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
Utilizes four indentors to make the crimp
Flip-top style uses a pull pin to open head for easy removal from the connector
U.S. Patents #6,206,663 and #6,065,326
Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger

Specifications

Bare Tool/Kit:	Bare Tool
Battery Capacity:	3 Ah
Battery Type:	Lithium-Ion
Control Type:	Trigger
Country of Origin:	DE
Crimping Capacity:	6 AWG to 500 kcmil Copper Lug/Splice, 6 AWG to 400 kcmil Aluminum Lug/Splice
Crimping Force:	55 kN
Handle Type:	Overmolded Tacky Grip
Overall Length:	14 in
Series:	EK06ATCL
Voltage Rating:	18 V
